BDW51B - Bipolar NPN Device

📥 Download Datasheet

Datasheet preview – BDW51B

Datasheet Details

Part number BDW51B
Manufacturer Seme LAB
File Size 11.30 KB
Description Bipolar NPN Device
Datasheet download datasheet BDW51B Datasheet
Additional preview pages of the BDW51B datasheet.

📁 Similar Datasheet

  • BDW51B - NPN Transistor (INCHANGE)
  • BDW51 - NPN Transistor (INCHANGE)
  • BDW51A - NPN Transistor (INCHANGE)
  • BDW51C - SILICON POWER TRANSISTOR (SavantIC)
  • BDW51C - NPN Transistor (INCHANGE)
  • BDW52 - Silicon PNP Power Transistor (INCHANGE)
  • BDW52A - Silicon PNP Power Transistor (INCHANGE)
  • BDW52B - Silicon PNP Power Transistor (INCHANGE)
  • BDW52C - Silicon PNP Power Transistor (INCHANGE)
  • BDW52C - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by Seme LAB

Full PDF Text Transcription

Click to expand full text

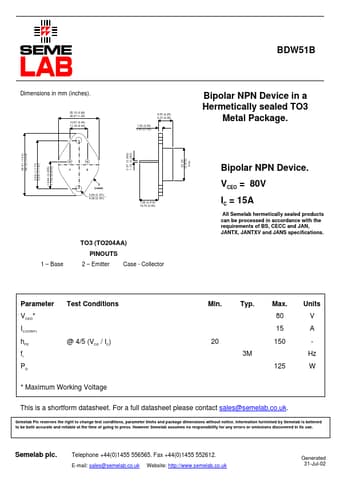

BDW51B Dimensions in mm (inches). 25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 1.52 (0.06) 3.43 (0.135) 6.35 (0.25) 9.15 (0.36) Bipolar NPN Device in a Hermetically sealed TO3 Metal Package. 38.61 (1.52) 39.12 (1.54) 0.97 (0.060) 1.10 (0.043) 29.9 (1.177) 30.4 (1.197) 22.23 (0.875) max. 16.64 (0.655) 17.15 (0.675) 1 2 Bipolar NPN Device. VCEO = 80V 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) IC = 15A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications. TO3 (TO204AA) PINOUTS 1 – Base 2 – Emitter Case - Collector Parameter VCEO* IC(CONT) hFE ft PD Test Conditions Min. Typ. Max.
