BDW51C Bipolar NPN Device

BDW51C Dimensions in mm (inches). 25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 1.52 (0.06) 3.43 (0.135) 6.35 (0.25) 9.15 (0.36) Bipolar NPN Device in a Hermetically sealed TO3 Metal Package. www.DataSheet4U.com 38.61 (1.52) 39.12 (1.54) 0.97 (0.060) 1.10 (0.043) 29.9 (1.177) 30.4 (1.197) 22.23 (0.875) max. 16.64 (0.655) 17.15 (0.675) 1 2 Bipolar NPN Device. VCEO = 100V 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) IC = 15A All Semelab hermetically sealed prod.

BDW51C Datasheet (43.29 KB)

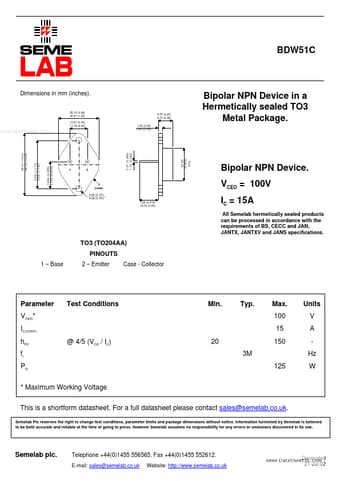

BDW51C Datasheet Preview — Preview of BDW51C PDF

Datasheet Details

Part number:

BDW51C

Manufacturer:

Seme LAB

File Size:

43.29 KB

Description:

Bipolar npn device.
