BDW52A - Bipolar PNP Device

📥 Download Datasheet

Datasheet preview – BDW52A

Datasheet Details

Part number BDW52A
Manufacturer Seme LAB
File Size 12.15 KB
Description Bipolar PNP Device
Datasheet download datasheet BDW52A Datasheet
Additional preview pages of the BDW52A datasheet.

📁 Similar Datasheet

  • BDW52A - Silicon PNP Power Transistor (INCHANGE)
  • BDW52 - Silicon PNP Power Transistor (INCHANGE)
  • BDW52B - Silicon PNP Power Transistor (INCHANGE)
  • BDW52C - Silicon PNP Power Transistor (INCHANGE)
  • BDW52C - SILICON POWER TRANSISTOR (SavantIC)
  • BDW51 - NPN Transistor (INCHANGE)
  • BDW51A - NPN Transistor (INCHANGE)
  • BDW51B - NPN Transistor (INCHANGE)
  • BDW51C - SILICON POWER TRANSISTOR (SavantIC)
  • BDW51C - NPN Transistor (INCHANGE)
Other Datasheets by Seme LAB

Full PDF Text Transcription

Click to expand full text

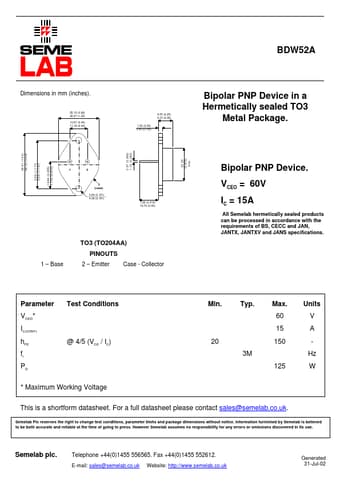

BDW52A Dimensions in mm (inches). 25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 1.52 (0.06) 3.43 (0.135) 6.35 (0.25) 9.15 (0.36) Bipolar PNP Device in a Hermetically sealed TO3 Metal Package. 38.61 (1.52) 39.12 (1.54) 0.97 (0.060) 1.10 (0.043) 29.9 (1.177) 30.4 (1.197) 22.23 (0.875) max. 16.64 (0.655) 17.15 (0.675) 1 2 Bipolar PNP Device. VCEO = 60V 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) IC = 15A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications. TO3 (TO204AA) PINOUTS 1 – Base 2 – Emitter Case - Collector Parameter VCEO* IC(CONT) hFE ft PD Test Conditions Min. Typ. Max.
