BDW54 - PNP SILICON POWER DARLINGTONS

Power Innovations Limited

Datasheet Details

Part number	BDW54
Manufacturer	Power Innovations Limited
File Size	163.58 KB
Description	PNP SILICON POWER DARLINGTONS
Datasheet	BDW54 Datasheet
Additional preview pages of the BDW54 datasheet.

📁 Similar Datasheet

BDW54 - PNP Transistor (INCHANGE)
BDW51 - NPN Transistor (INCHANGE)
BDW51A - Bipolar NPN Device (Seme LAB)
BDW51A - NPN Transistor (INCHANGE)
BDW51B - Bipolar NPN Device (Seme LAB)
BDW51B - NPN Transistor (INCHANGE)
BDW51C - Bipolar NPN Device (Seme LAB)
BDW51C - SILICON POWER TRANSISTOR (SavantIC)
BDW51C - NPN Transistor (INCHANGE)
BDW52 - Bipolar PNP Device (Seme LAB)

Other Datasheets by Power Innovations Limited

BDW54A - PNP SILICON POWER DARLINGTONS
BDW54B - PNP SILICON POWER DARLINGTONS
BDW54C - PNP SILICON POWER DARLINGTONS
BDW54D - PNP SILICON POWER DARLINGTONS
BDW53 - NPN Transistor
BDW53A - NPN Transistor
BDW53B - NPN Transistor
BDW53C - NPN Transistor

Full PDF Text Transcription

Click to expand full text

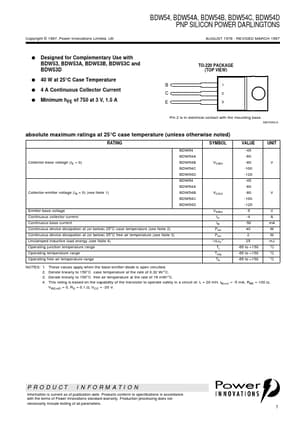

BDW54, BDW54A, BDW54B, BDW54C, BDW54D PNP SILICON POWER DARLINGTONS Copyright © 1997, Power Innovations Limited, UK AUGUST 1978 - REVISED MARCH 1997 q Designed for Complementary Use with BDW53, BDW53A, BDW53B, BDW53C and BDW53D 40 W at 25°C Case Temperature B TO-220 PACKAGE (TOP VIEW) q q q 1 2 3 4 A Continuous Collector Current Minimum hFE of 750 at 3 V, 1.5 A C E Pin 2 is in electrical contact with the mounting base.

Published: Mar 23, 2005 |
