BU508AFI - NPN Transistor

Product Overview

📥 Download Datasheet

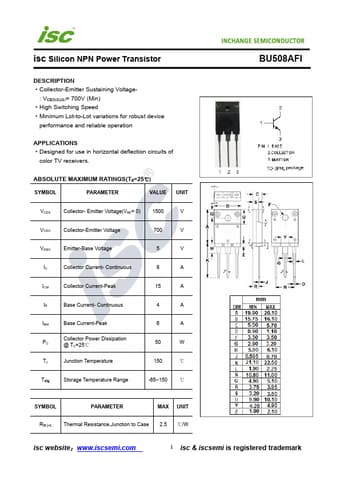

Datasheet preview – BU508AFI

Datasheet Details

Part number BU508AFI
Manufacturer INCHANGE
File Size 210.65 KB
Description NPN Transistor
Datasheet download datasheet BU508AFI Datasheet
Additional preview pages of the BU508AFI datasheet.

Product details

Description

Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 700V (Min) High Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in horizontal deflection circuits of color TV receivers.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCES Collector- Emitter Voltage(VBE= 0) 1500 V VCEO Collector-Emitter Voltage 700 V VEBO Emitter-Base Voltage 5 V IC Collector Current- Continuous
