IRL60S216 Datasheet, Mosfet, INCHANGE

IRL60S216 Features

  • Mosfet
  • With To-263(D2PAK) package
  • Low input capacitance and gate charge
  • Low gate input resistance
  • 100% avalanche tested
  • Minimum Lot-to-Lot variatio

PDF File Details

Part number:

IRL60S216

Manufacturer:

INCHANGE

File Size:

254.10kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

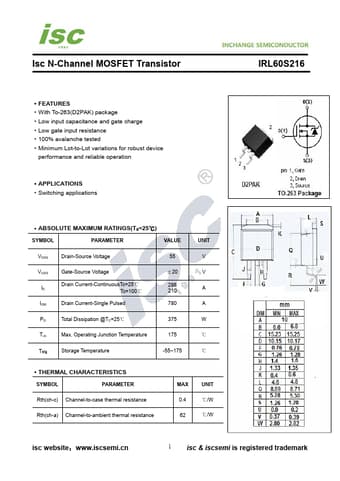

Datasheet Preview: IRL60S216 📥 Download PDF (254.10kb)
Page 2 of IRL60S216

IRL60S216 Application

  • Applications
  • Switching applications
  • ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 55 V
