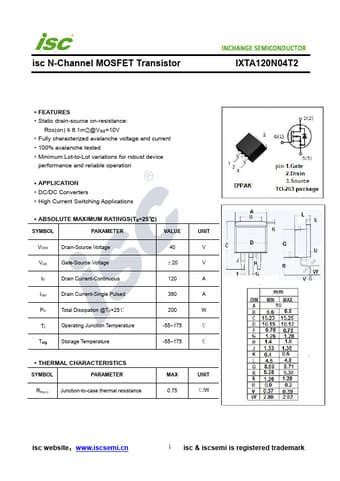

IXTA120N04T2 Datasheet, Mosfet, INCHANGE

IXTA120N04T2 Features

• Mosfet
• Static drain-source on-resistance: RDS(on) ≤ 6.1mΩ@VGS=10V
• Fully characterized avalanche voltage and current
• 100% avalanche tested
• Minimum Lot-to-Lot

PDF File Details

Part number:

IXTA120N04T2

Manufacturer:

INCHANGE

File Size:

250.55kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

IXTA120N04T2 Application

• Applications
• ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 40 VGS Gate-Source Voltage ±20 ID

TAGS

IXTA120N04T2

INCHANGE
