IXTA130N10T Datasheet - INCHANGE

IXTA130N10T, N-Channel MOSFET

isc N-Channel MOSFET Transistor *.

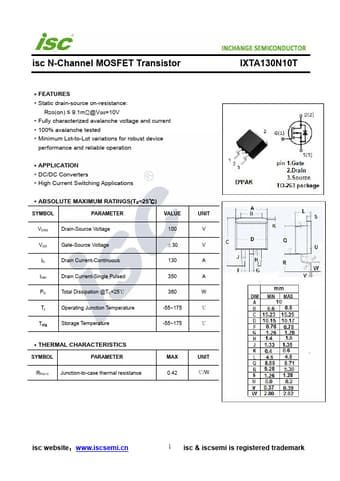

datasheet Preview Page 1 from Datasheet4u.com

IXTA130N10T-INCHANGE.pdf

IXTA130N10T Datasheet Preview — Preview of IXTA130N10T PDF

Datasheet Details

Part number:

IXTA130N10T

Manufacturer:

INCHANGE

File Size:

250.94 KB

Description:

N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤ 9.1mΩ@VGS=10V
* Fully characterized avalanche voltage and current
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGS Gate-Source Voltage ±30 ID Drain Current-Continuous 130 IDM Drain Current-Single Pulsed 350 PD Total Dissipation @TC=25℃ 360 Tj Operating Junction Temperature -55~175 Tstg Storage T
