IXTC160N10T N-Channel MOSFET

isc N-Channel MOSFET Transistor *.

IXTC160N10T-INCHANGE.pdf

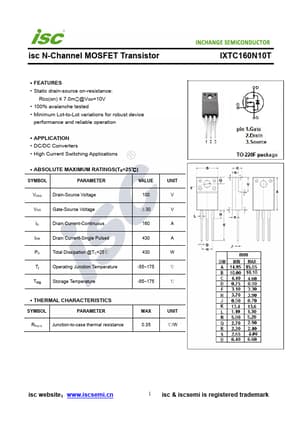

IXTC160N10T Datasheet Preview — Preview of IXTC160N10T PDF

Datasheet Details

Part number:

IXTC160N10T

Manufacturer:

INCHANGE

File Size:

246.85 KB

Description:

N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤ 7.0mΩ@VGS=10V
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGS Gate-Source Voltage ±30 ID Drain Current-Continuous 160 IDM Drain Current-Single Pulsed 430 PD Total Dissipation @TC=25℃ 430 Tj Operating Junction Temperature -55~175 Tstg Storage T
