IXTC220N075T Power MOSFET

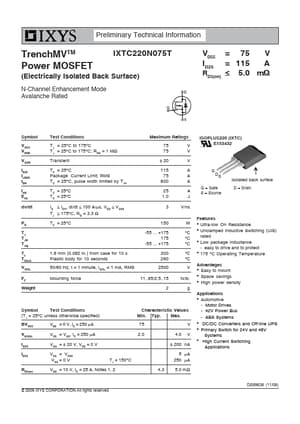

Preliminary Technical Information TrenchMVTM IXTC220N075T Power MOSFET (Electrically Isolated Back Surface) N-Channel Enhancement Mode Avalanche Rated VDSS = ID25 = RDS(on) ≤ 75 115 5.0 V A mΩ Symbol VDSS VDGR VGSM ID25 ILRMS IDM IAR EAS dv/dt PD TJ TJM Tstg TL TSOLD VISOL FC Weight Test Conditions Maximum Ratings TJ = 25°C to 175°C TJ = 25°C to 175°C; RGS = 1 MΩ Transient 75 75 ± 20 V V V TC = 25°C Package Current Limit, RMS TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25.

IXTC220N075T Features

* Ultra-low On Resistance Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect 175 °C Operating Temperature Advantages Easy to mount Space savings High power density Applications Automotive - Motor Drives - 42V Power Bus - ABS Systems DC/DC Converters and Off
