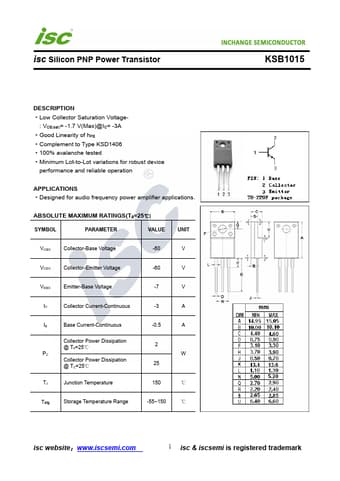

KSB1015 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

KSB1015

Manufacturer:

INCHANGE

File Size:

197.07kb

Download:

📄 Datasheet

Description:

Pnp transistor.

Low Collector Saturation Voltage- : VCE(sat)= -1.7 V(Max)@IC= -3A

Good Linearity of hFE

Complement to Type

KSB1015 Application

• Applications
• Designed for audio frequency power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT
