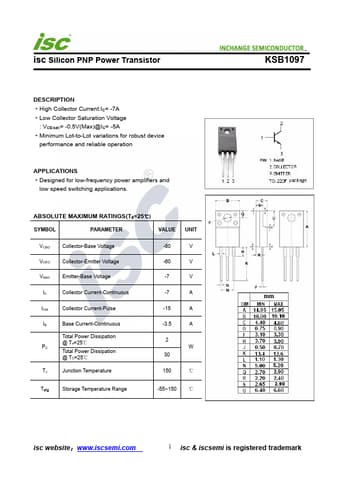

KSB1097 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

KSB1097

Manufacturer:

INCHANGE

File Size:

190.76kb

Download:

📄 Datasheet

Description:

Pnp transistor.

High Collector Current:IC= -7A

Low Collector Saturation Voltage : VCE(sat)= -0.5V(Max)@IC= -5A

Minimum Lot

KSB1097 Application

• Applications
• Designed for low-frequency power amplifiers and low speed switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL P
