KSH117 - PNP Transistor

KSH117 Description

isc Silicon PNP Power Transistor INCHANGE Semiconductor KSH117 .
High DC current gain. Built-in a damper diode at E-C. Electrically similar to popular TIP117. 100% avalanche tested. Minimum Lot-.

KSH117 Applications

* Designed for general purpose amplifier and low speed switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -100 V VCEO Collector-Emitter Voltage -100 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -

📥 Download Datasheet

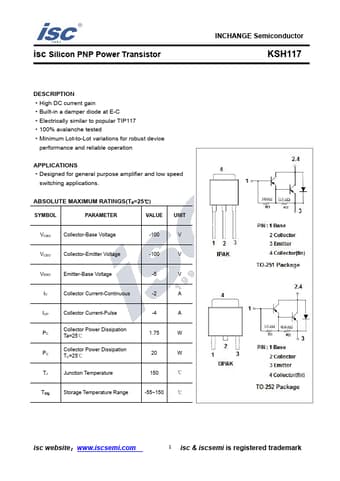

Preview of KSH117 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KSH117
Manufacturer
INCHANGE
File Size
286.16 KB
Datasheet
KSH117-INCHANGE.pdf
Description
PNP Transistor
