KSH127 Datasheet - Fairchild Semiconductor

KSH127 PNP Transistor

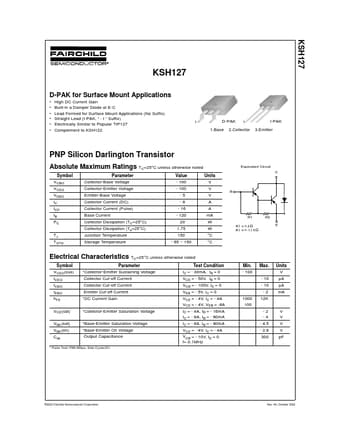

KSH127 KSH127 D-PAK for Surface Mount Applications High DC Current Gain Built-in a Damper Diode at E-C Lead Formed for Surface Mount Applications (No Suffix) Straight Lead (I-PAK, “ - I “ Suffix) Electrically Similar to Popular TIP127 Complement to KSH122 1 D-PAK 1.Base 1 I-PAK 3.Emitter 2.Collector PNP Silicon Darlington Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC ICP IB PC TJ TSTG.

KSH127_FairchildSemiconductor.pdf
