KSH210 Datasheet - Fairchild Semiconductor

KSH210 PNP Transistor

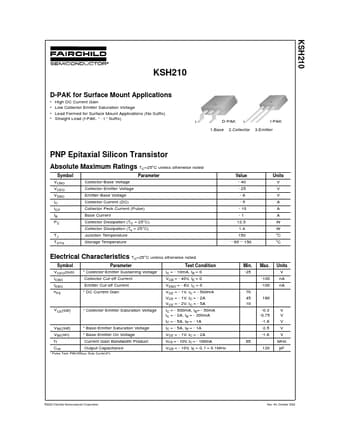

KSH210 KSH210 D-PAK for Surface Mount Applications High DC Current Gain Low Collector Emitter Saturation Voltage Lead Formed for Surface Mount Applications (No Suffix) Straight Lead (I-PAK, “ - I “ Suffix) 1 D-PAK 1.Base 1 I-PAK 3.Emitter 2.Collector PNP Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC ICP IB PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Bas.

KSH210_FairchildSemiconductor.pdf
