KSH122 - NPN Transistor

KSH122 Description

isc Silicon NPN Power Transistor .
High DC current gain. Built-in a damper diode at E-C. Electrically similar to popular TIP122. DPAK for surface mount applications.

KSH122 Applications

* Lead formed for surface mount applications(NO suffix)
* Straight lead(IPAK,“－I”suffix)
* Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS
* Designed for general purpose amplifier and low speed switching applications. ABSOLUTE MAXIMUM RAT

📥 Download Datasheet

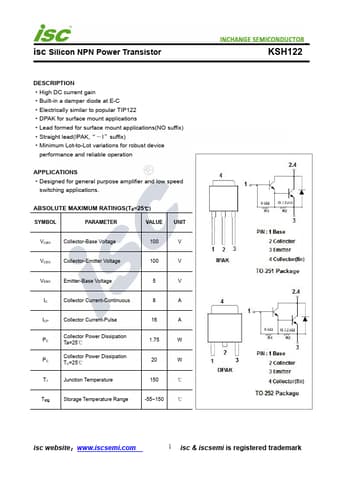

Preview of KSH122 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KSH122
Manufacturer
INCHANGE
File Size
252.58 KB
Datasheet
KSH122-INCHANGE.pdf
Description
NPN Transistor
