KSH29C Datasheet - Fairchild Semiconductor

KSH29C NPN Transistor

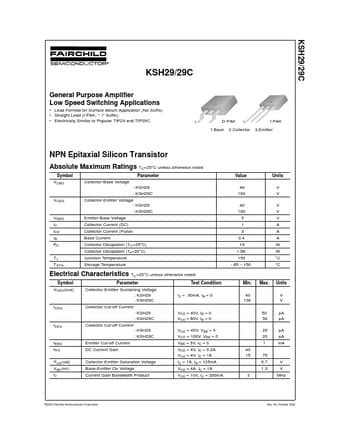

KSH29/29C KSH29/29C General Purpose Amplifier Low Speed Switching Applications Lead Formed for Surface Mount Application (No Suffix) Straight Lead (I-PAK, “- I” Suffix) Electrically Similar to Popular TIP29 and TIP29C 1 D-PAK 1.Base 1 I-PAK 3.Emitter 2.Collector NPN Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO Parameter Collector-Base Voltage : KSH29 : KSH29C VCEO Collector-Emitter Voltage : KSH29 : KSH29C Em.

KSH29C_FairchildSemiconductor.pdf
