SPP07N60C3 - N-Channel MOSFET

INCHANGE

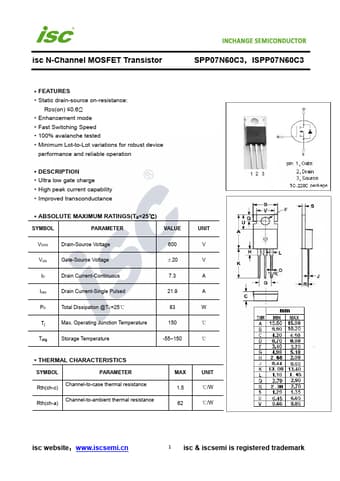

SPP07N60C3 Datasheet Preview — Preview of SPP07N60C3 PDF

Datasheet Details

Part number	SPP07N60C3
Manufacturer	INCHANGE
File Size	243.70 KB
Description	N-Channel MOSFET
Datasheet	SPP07N60C3-INCHANGE.pdf

SPP07N60C3 Product details

Description

Ultra low gate charge High peak current capability Improved transconductance ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 600 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 7.3 IDM Drain Current-Single Pulsed 21.9 PD Total Dissipation @TC=25℃ 83 Tj Max.Operating Junction Temperature 150 Tstg Storage Temperature -55~150 UNIT V V A A W ℃ ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth(ch-c) Channel

Features

br>.
Static drain-source on-resistance: RDS(on) ≤0.6Ω.
Enhancement mode.
Fast Switching Speed.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
