STF13NM60N N-Channel MOSFET

STF13NM60N Description

Isc N-Channel MOSFET Transistor INCHANGE Semiconductor STF13NM60N *.

STF13NM60N Features

* Low input capacitance and gate charge
* Low gate input resistance
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STF13NM60N Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 600 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@TC=25℃ TC=100℃ Drain Current-Single Pulsed ±25 11 6.93 44 PD Total Dissipation 25 Tj Operating Junction Tempe

📥 Download Datasheet

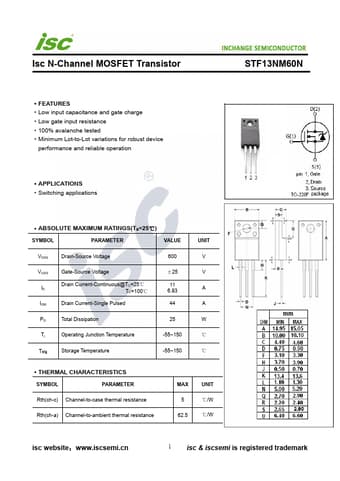

Preview of STF13NM60N PDF
datasheet Preview Page 2

Datasheet Details

Part number
STF13NM60N
Manufacturer
INCHANGE
File Size
196.44 KB
Datasheet
STF13NM60N-INCHANGE.pdf
Description
N-Channel MOSFET
