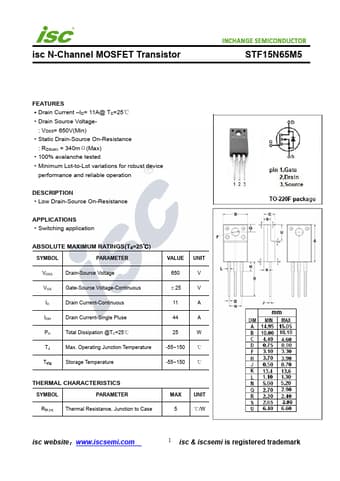

STF15N65M5 Datasheet, Mosfet, INCHANGE

STF15N65M5 Features

• Mosfet
• Drain Current
    –ID= 11A@ TC=25℃
• Drain Source Voltage- : VDSS= 650V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 340mΩ(Max)
• 100%

PDF File Details

Part number:

STF15N65M5

Manufacturer:

INCHANGE

File Size:

261.49kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

Low Drain-Source On-Resistance APPLICATIONS

Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAM

STF15N65M5 Application

• Applications
• Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Volta
