STF18N55M5 N-Channel MOSFET

INCHANGE

Description

isc N-Channel MOSFET Transistor STF18N55M5 .

📥 Download Datasheet

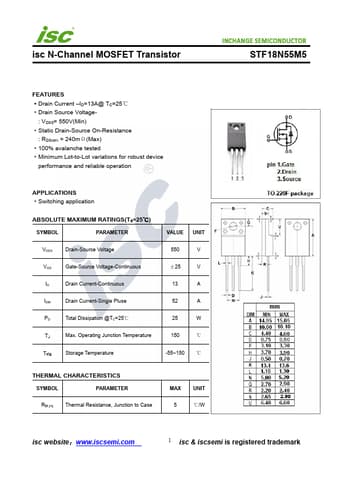

STF18N55M5 Datasheet Preview — Preview of STF18N55M5 PDF

Datasheet Specifications

Part number: STF18N55M5
Manufacturer: INCHANGE
File Size: 261.33 KB
Datasheet: STF18N55M5-INCHANGE.pdf
Description: N-Channel MOSFET

Features

* Drain Current
* ID=13A@ TC=25℃
* Drain Source Voltage- : VDSS= 550V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 240mΩ(Max)
* 100% avalanche tested

Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max. Operating Junction Temperature Tstg Storage Tempe
