STF18N60DM2 Datasheet - STMicroelectronics

N-CHANNEL POWER MOSFET

STF18N60DM2 Features

* Order code STF18N60DM2 VDS 600 V RDS(on) max. 0.295 Ω ID 13 A

* Fast-recovery body diode

* Extremely low gate charge and input capacitance

* Low on-resistance

* 100% avalanche tested

* Extremely high dv/dt ruggedness

* Zener-protected Applications

* Switching applicat

STF18N60DM2 General Description

This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode series. It offers very low recovery charge (Qrr) and time (trr) combined with low RDS(on), rendering it suitable for the most demanding high efficiency converters and ideal for bridge topologies and ZVS phase-shi.

STF18N60DM2 Datasheet (578.84 KB)

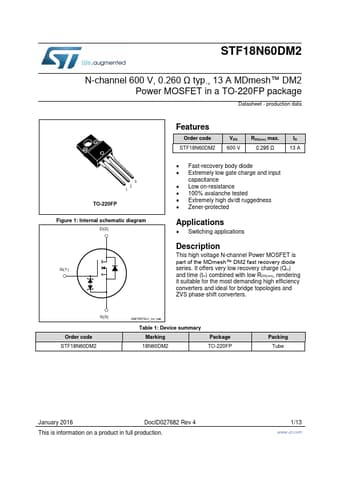

STF18N60DM2 Datasheet Preview — Preview of STF18N60DM2 PDF

Datasheet Details

Part number:

STF18N60DM2

Manufacturer:

STMicroelectronics ↗

File Size:

578.84 KB

Description:

N-channel power mosfet.
STF18N60DM2 N-channel 600 V, 0.260 Ω typ., 13 A MDmesh™ DM2 Power MOSFET in a TO-220FP package Datasheet - production data TO-220FP Figure 1: Intern.
