STF18N55M5 - N-channel Power MOSFET

STMicroelectronics

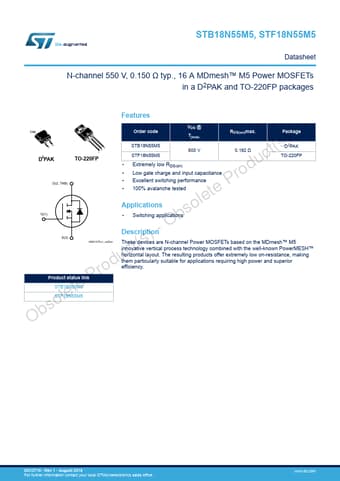

STF18N55M5 Datasheet Preview — Preview of STF18N55M5 PDF

Datasheet Details

Part number	STF18N55M5
Manufacturer	STMicroelectronics ↗
File Size	818.38 KB
Description	N-channel Power MOSFET
Datasheet	STF18N55M5_STMicroelectronics.pdf

STF18N55M5 Product details

Description

These devices are N-channel Power MOSFETs based on the MDmesh™ M5 innovative vertical process technology combined with the well-known PowerMESH™ horizontal layout.

Features

TAB ) 3 t(s 1 c D2PAK 3 2 1 TO-220FP Produ D(2, TAB) Order code VDS @ Tjmax. RDS(on)max. STB18N55M5 STF18N55M5 600 V 0.192 Ω.
Extremely low RDS(on).
Low gate charge and input capacitance.
Excellent switching performance.
100% avalanche tested Package D2PAK TO-220FP lete.
