STF18N65M5 Datasheet - STMicroelectronics

N-channel Power MOSFET

STF18N65M5 Features

* TAB Order code STF18N65M5 STI18N65M5 STP18N65M5 STW18N65M5

* VDSS @ TJmax RDS(on) max ID 3 3 12 1 2 TO-220FP 710 V < 0.22 Ω 15 A TAB I²PAK Worldwide best RDS(on)

* area Higher VDSS rating and high dv/dt capability Excellent switching performance 100% avalanche

STF18N65M5 General Description

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low onresistance, which is unmatched among siliconbase.

STF18N65M5 Datasheet (787.68 KB)

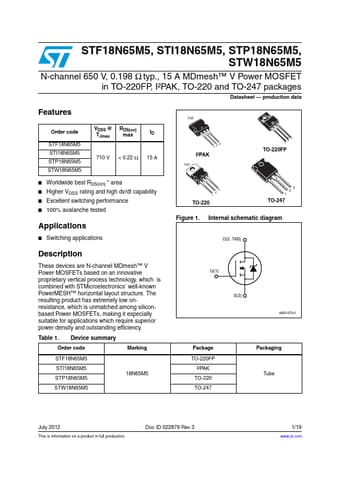

STF18N65M5 Datasheet Preview — Preview of STF18N65M5 PDF

Datasheet Details

Part number:

STF18N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

787.68 KB

Description:

N-channel power mosfet.
STF18N65M5, STI18N65M5, STP18N65M5, STW18N65M5 N-channel 650 V, 0.198 Ω typ., 15 A MDmesh™ V Power MOSFET in TO-220FP, I²PAK, TO-220 and TO-247 packag.
