STF18N65M2 Datasheet, Mosfet, STMicroelectronics

STF18N65M2 Features

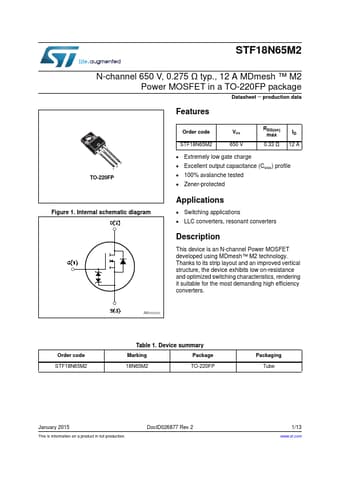

• Mosfet 3 2 1 TO-220FP Figure 1. Internal schematic diagram Order code STF18N65M2 VDS 650 V RDS(on) max 0.33 Ω ID 12 A
• Extremely low gate charge
• Excellent output capac

PDF File Details

Part number:

STF18N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

771.97kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical s

STF18N65M2 Application

• Applications
• Switching applications
• LLC converters, resonant converters Description This device is an N-channel Power MOSFET de
