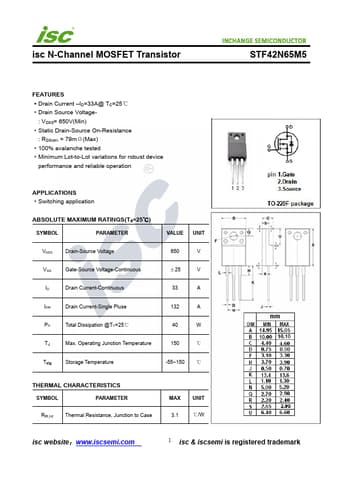

STF42N65M5 Datasheet, Mosfet, INCHANGE

STF42N65M5 Features

• Mosfet
• Drain Current
    –ID=33A@ TC=25℃
• Drain Source Voltage- : VDSS= 650V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 79mΩ(Max)
• 100% av

PDF File Details

Part number:

STF42N65M5

Manufacturer:

INCHANGE

File Size:

261.80kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

STF42N65M5 Application

• Applications
• Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 650 V VG
