STI45N10F7 - N-Channel MOSFET

INCHANGE

📥 Download Datasheet

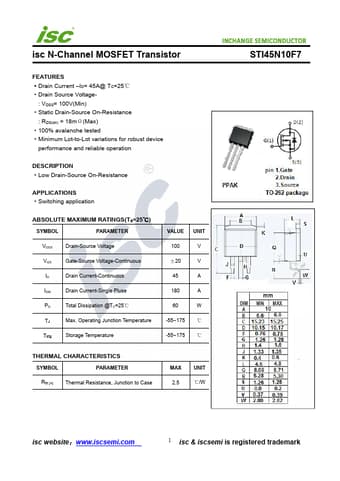

STI45N10F7 Datasheet Preview — Preview of STI45N10F7 PDF

Datasheet Details

Part number	STI45N10F7
Manufacturer	INCHANGE
File Size	309.40 KB
Description	N-Channel MOSFET
Datasheet	STI45N10F7-INCHANGE.pdf

STI45N10F7 Product details

Description

Low Drain-Source On-Resistance APPLICATIONS Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max.Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 100 V ±20 V 45 A 180 A 60 W -55~175 ℃ -55~175 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance

Features

Drain Current.
ID= 45A@ TC=25℃.
Drain Source Voltage- : VDSS= 100V(Min).
Static Drain-Source On-Resistance : RDS(on) = 18mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
