STI4N62K3 - SuperMESH3 Power MOSFET

ST Microelectronics

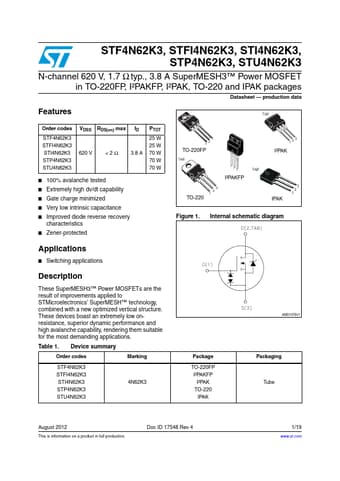

STI4N62K3 Datasheet Preview — Preview of STI4N62K3 PDF

Datasheet Details

Part number	STI4N62K3
Manufacturer	STMicroelectronics ↗
File Size	1.00 MB
Description	SuperMESH3 Power MOSFET
Datasheet	STI4N62K3_STMicroelectronics.pdf

STI4N62K3 Product details

Description

These devices are made using the SuperMESH3™ Power MOSFET technology that is obtained via improvements applied to STMicroelectronics’ SuperMESH™ technology combined with a new optimized vertical structure.

Features

Type STB4N62K3 STF4N62K3 STI4N62K3 STP4N62K3.
VDSS RDS(on) max ID Pw 70 W 25 W 70 W 70 W 1 3 1 2 3 620 V < 1.95 Ω D²PAK 3.8 A TO-220FP 100% avalanche tested 3 Extremely high dv/dt capability Gate charge minimized Very low intrinsic capacitances Improved diode reverse recovery characteristics Zener-protected Figure 1. I²PAK 3 12 1 2 TO-220.
