STI45N10F7 Datasheet, Mosfet, STMicroelectronics

STI45N10F7 Features

  • Mosfet Order codes STD45N10F7 STI45N10F7 STP45N10F7 VDS RDS(on) max.(1) 100 V 0.018 Ω 1. @ VGS = 10 V
  • Ultra low on-resistance
  • 100% avalanche tested ID 45 A PTOT 60 W

PDF File Details

Part number:

STI45N10F7

Manufacturer:

STMicroelectronics ↗

File Size:

1.13MB

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices utilize the 7th generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure. The res

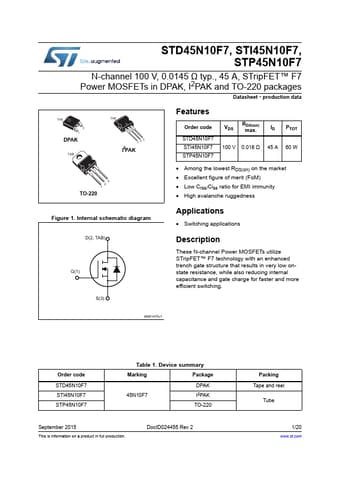

Datasheet Preview: STI45N10F7 📥 Download PDF (1.13MB)
Page 2 of STI45N10F7 Page 3 of STI45N10F7

STI45N10F7 Application

  • Applications
  • Switching applications Description These devices utilize the 7th generation of design rules of ST’s proprietary STripFET™ te
