STP35N65M5 N-Channel MOSFET

STP35N65M5 Description

isc N-Channel MOSFET Transistor STP35N65M5 *.

STP35N65M5 Features

* With TO-220 packaging
* High speed switching
* Low gate input resistance
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STP35N65M5 Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 650 V VGSS Gate-Source Voltage ±25 V ID Drain Current-Continuous@TC=25℃ 27 TC=100℃ 17 A IDM Drain Current-Single Pulsed 108 A PD Total Di

📥 Download Datasheet

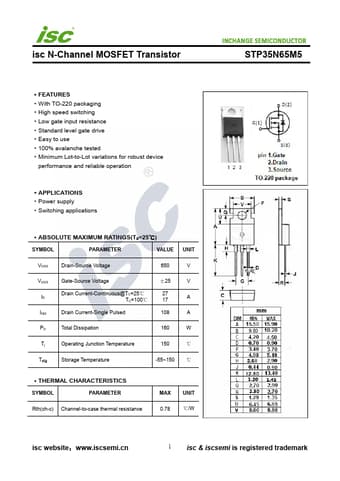

Preview of STP35N65M5 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP35N65M5
Manufacturer
INCHANGE
File Size
252.68 KB
Datasheet
STP35N65M5-INCHANGE.pdf
Description
N-Channel MOSFET
