STP38N65M5 N-Channel MOSFET

STP38N65M5 Description

isc N-Channel MOSFET Transistor STP38N65M5 .

STP38N65M5 Features

* Drain Current
* ID=30A@ TC=25℃
* Drain Source Voltage- : VDSS= 650V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 95mΩ(Max)
* 100% avalanche tested

STP38N65M5 Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 650 V VGS Gate-Source Voltage-Continuous ±25 V ID Drain Current-Continuous 30 A IDM Drain Current-Single Pluse 120 A PD Total Dissipation @TC=25℃ 190 W TJ Max.

📥 Download Datasheet

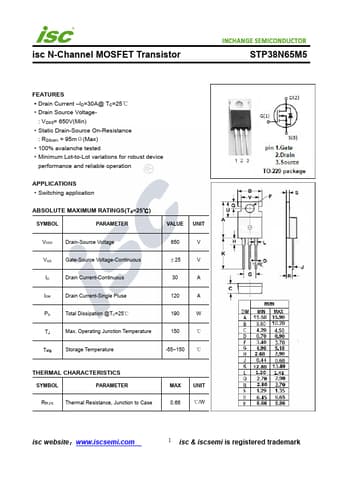

Preview of STP38N65M5 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP38N65M5
Manufacturer
INCHANGE
File Size
271.07 KB
Datasheet
STP38N65M5-INCHANGE.pdf
Description
N-Channel MOSFET
