STW24NM65N - N-Channel MOSFET

INCHANGE

📥 Download Datasheet

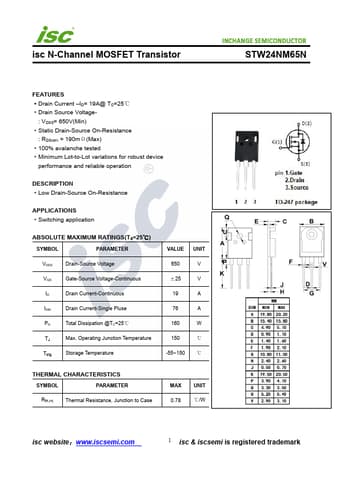

STW24NM65N Datasheet Preview — Preview of STW24NM65N PDF

Datasheet Details

Part number	STW24NM65N
Manufacturer	INCHANGE
File Size	349.64 KB
Description	N-Channel MOSFET
Datasheet	STW24NM65N-INCHANGE.pdf

STW24NM65N Product details

Description

Low Drain-Source On-Resistance APPLICATIONS Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max.Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 650 V ±25 V 19 A 76 A 160 W 150 ℃ -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, J

Features

Drain Current.
ID= 19A@ TC=25℃.
Drain Source Voltage- : VDSS= 650V(Min).
Static Drain-Source On-Resistance : RDS(on) = 190mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
