STW30N65M5 Datasheet, Mosfet, INCHANGE

STW30N65M5 Features

  • Mosfet
  • Static Drain-Source On-Resistance : RDS(on) = 0.139Ω(Max)
  • Fast Switching
  • 100% avalanche tested
  • Minimum Lot-to-Lot variations for robust device perfor

PDF File Details

Part number:

STW30N65M5

Manufacturer:

INCHANGE

File Size:

268.86kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

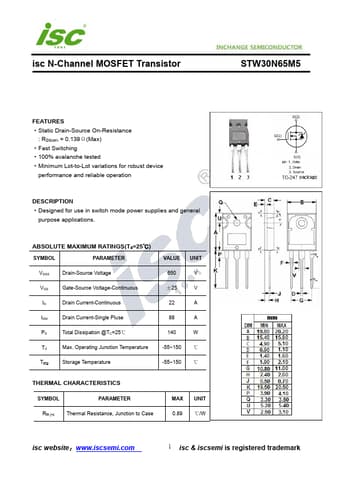

  • Datasheet Preview: STW30N65M5 📥 Download PDF (268.86kb)
    Page 2 of STW30N65M5

    STW30N65M5 Application

    • Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 650 V VGS Gate-Source Voltage-Continu
