STW30NM60D Datasheet, Mosfet, ST Microelectronics

STW30NM60D Features

  • Mosfet TYPE STW30NM60D s s s s Figure 1: Package RDS(on) < 0.145 Ω ID 30 A VDSS 600 V s s TYPICAL RDS(on) = 0.125 Ω HIGH dv/dt AND AVALANCHE CAPABILITIES 100% AVALANCHE RATED LOW INPUT CAP

PDF File Details

Part number:

STW30NM60D

Manufacturer:

STMicroelectronics ↗

File Size:

249.86kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The FDmesh™ associates all advantages of reduced on-resistance and fast switching with an intrinsic fast-recovery body diode. It is t

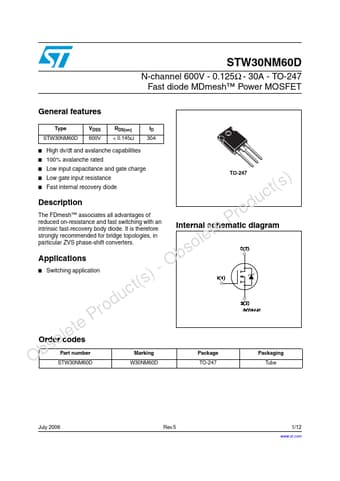

Datasheet Preview: STW30NM60D 📥 Download PDF (249.86kb)
Page 2 of STW30NM60D Page 3 of STW30NM60D

STW30NM60D Application

  • Applications ZVS PHASE-SHIFT FULL BRIDGE CONVERTERS FOR SMPS AND WELDING EQUIPMENT Table 2: Order Codes SALES TYPE STW30NM60D MARKING W30NM60D PACK
