STW3101 Datasheet - ST Microelectronics

STW3101 TRANSCEIVER MODULE

In a 1.4 x 7 x 7mm low-profile Ball Grid Array package, the new modules integrate all of the key functions, requiring only a 26MHz crystal and a power amplifier module (PA+antenna switch functions) to build a complete triple-band solution from antenna to base band interface. Two versions are offered.

STW3101 Features

* Triple-band (GSM850 / DCS1800 / PCS1900). Supports data transfer applications in multislots GPRS class-12 EDGE Receive capability Integrates:

* BiCMOS6G RF transceiver

* 3 Receive Band Pass filters

* 3 Receive Matching Network between filters output & LNA input

* PLL

STW3101 Datasheet (478.48 KB)

Preview of STW3101 PDF

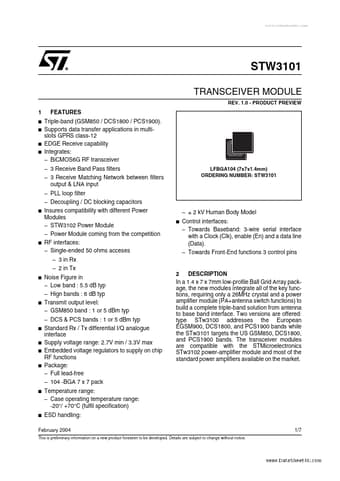

STW3101 Datasheet Preview Page 2 STW3101 Datasheet Preview Page 3

Datasheet Details

Part number:

STW3101

Manufacturer:

STMicroelectronics ↗

File Size:

478.48 KB

Description:

Transceiver module.
