STW34NB20 N-CHANNEL ENHANCEMENT MODE POWER MOSFET

STW34NB20 Description

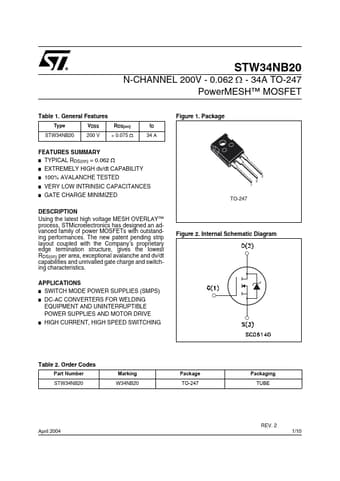

www.DataSheet4U.com N-CHANNEL 200V - 0.062 Ω - 34A TO-247 PowerMESH™ MOSFET Table 1.General .
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

STW34NB20 Features

* Type STW34NB20 VDSS 200 V RDS(on) < 0.075 Ω ID 34 A STW34NB20 Figure 1. Package FEATURES SUMMARY
* TYPICAL RDS(on) = 0.062 Ω

STW34NB20 Applications

* SWITCH MODE POWER SUPPLIES (SMPS)
* Figure 2. Internal Schematic Diagram DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE HIGH CURRENT, HIGH SPEED SWITCHING
* Table 2. Order Codes Part Number STW34NB20 Marking W34NB20 Package TO-247 Packagin
