STW34NM60ND N-CHANNEL POWER MOSFET

STW34NM60ND Description

STB34NM60ND, STF34NM60ND, STP34NM60ND, STW34NM60ND N-channel 600 V, 0.097 Ω typ., 29 A FDmesh™ II Power MOSFET (with fast diode) in D2PAK, TO-220FP, T.
These devices are N-channel FDmesh™ V Power MOSFETs produced using ST’s MDmesh™ V technology, which is based on an innovative proprietary vertical str.

STW34NM60ND Features

* Order codes VDS @TJ max. RDS(on) max. ID STB34NM60ND STF34NM60ND STP34NM60ND 650 V 0.110 Ω 29 A STW34NM60ND
* The world’s best RDS(on) in TO-220 amongst the fast recovery diode devices
* 100% avalanche tested
* Low input capacitance and gate charge
* Low gate i

📥 Download Datasheet

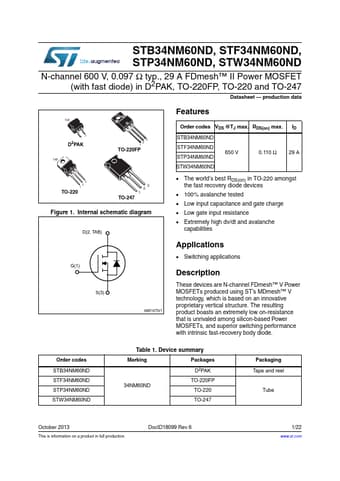

Preview of STW34NM60ND PDF
datasheet Preview Page 2 datasheet Preview Page 3
