STW3100

TRANSCEIVER MODULE

STW3100 Features

* Triple-band (EGSM900 / DCS1800 / PCS1900). Supports data transfer applications in multislots GPRS class-12 EDGE Receive capability Integrates:

* BiCMOS6G RF transceiver

* 3 Receive Band Pass filters

* 3 Receive Matching Network between filters output & LNA input

* PLL

STW3100 General Description

In a 1.4 x 7 x 7mm low-profile Ball Grid Array package, the new modules integrate all of the key functions, requiring only a 26MHz crystal and a power amplifier module (PA+antenna switch functions) to build a complete triple-band solution from antenna to base band interface. Two versions are offered.

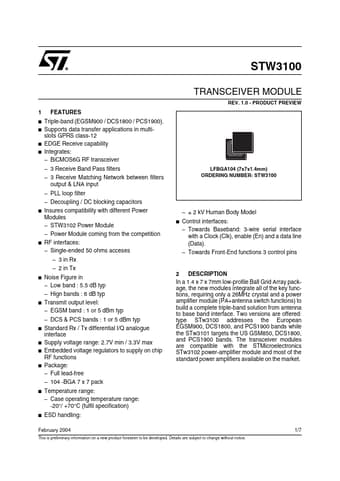

STW3100 Datasheet (482.47 KB)

Preview of STW3100 PDF

Datasheet Details

Part number:

STW3100

Manufacturer:

STMicroelectronics ↗

File Size:

482.47 KB

Description:

Transceiver module.
