Power MOSFET

STW34NM60N Features

* Type STF34NM60N STP34NM60N STW34NM60N

* VDSS 600 V 600 V 600 V RDS(on) max. 0.105 Ω 0.105 Ω 0.105 Ω ID 29 A 29 A 29 A PTOT 40 W 210 W 210 W 2 1 3 1 3 2 TO-247 TO-220 100% avalanche tested Low input capacitance and gate charge Low gate input resistance 3 1 2 TO-220FP Applicat

STW34NM60N General Description

These devices are made using the second generation of MDmeshTM technology. This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficien.

STW34NM60N Datasheet (0.99 MB)

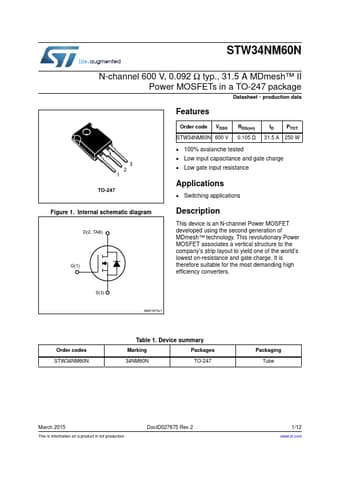

STW34NM60N Datasheet Preview — Preview of STW34NM60N PDF

Datasheet Details

Part number:

STW34NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

0.99 MB

Description:

Power mosfet.
DataSheet.in STF34NM60N STP34NM60N, STW34NM60N N-channel 600 V, 0.092 Ω , 29 A MDmesh™ II Power MOSFET TO-220, TO-247, TO-220FP Preliminary data Fea.
