STW34N65M5 Datasheet - STMicroelectronics

STW34N65M5-STMicroelectronics.pdf

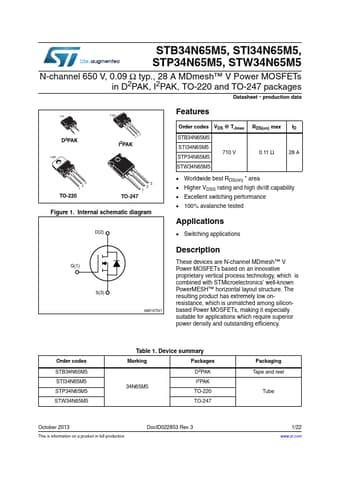

Preview of STW34N65M5 PDF
STW34N65M5 Datasheet Preview Page 2 STW34N65M5 Datasheet Preview Page 3

Datasheet Details

Part number:

STW34N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

1.34 MB

Description:

N-channel power mosfet.

STW34N65M5, N-channel Power MOSFET

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure.

The resulting product has extremely low onresistance, which is unmatched among siliconbase

STW34N65M5 Features

* Order codes VDS @ TJmax STB34N65M5 STI34N65M5 STP34N65M5 710 V STW34N65M5 RDS(on) max 0.11 Ω ID 28 A

* Worldwide best RDS(on)

* area

* Higher VDSS rating and high dv/dt capability

* Excellent switching performance

* 100% avalanche tested Applications
