STW33N20 Datasheet - ST Microelectronics

STW33N20 N-CHANNEL ENHANCEMENT MODE POWER MOSFET

www.DataSheet4U.com STW33N20 N - CHANNEL ENHANCEMENT MODE POWER MOSFET TYPE ST W33N20 s s s s s s s s V DSS 200 V R DS(on) < 0.085 Ω ID 33 A TYPICAL RDS(on) = 0.073 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100 oC LOW GATE CHARGE HIGH CURRENT CAPABILITY 150 oC OPERATING TEMPERATURE APPLICATION ORIENTED CHARACTERIZATION 3 2 1 TO-247 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s DC-DC CONVERTERS & DC-AC INVERTERS s T.

STW33N20_STMicroelectronics.pdf

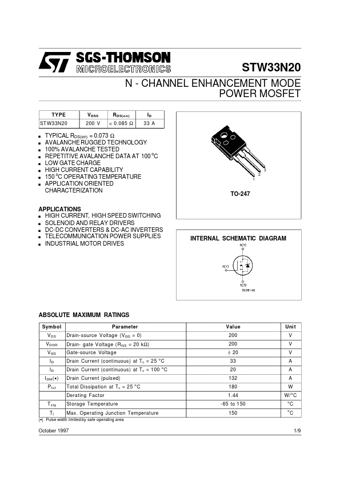

Preview of STW33N20 PDF
STW33N20 Datasheet Preview Page 2 STW33N20 Datasheet Preview Page 3

Datasheet Details

Part number:

STW33N20

Manufacturer:

STMicroelectronics ↗

File Size:

138.09 KB

Description:

N-channel enhancement mode power mosfet.
