STW33N60M6 N-CHANNEL POWER MOSFET

STW33N60M6 Description

STW33N60M6 Datasheet N-channel 600 V, 105 mΩ typ., 25 A, MDmesh™ M6 Power MOSFET in a TO-247 package 3 2 1 TO-247 D(2) G(1) .
The new MDmesh™ M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs.

STW33N60M6 Features

* Order code VDS STW33N60M6 600 V
* Reduced switching losses
* Lower RDS(on) per area vs previous generation
* Low gate input resistance
* 100% avalanche tested

STW33N60M6 Applications

* Switching applications
* LLC converters

📥 Download Datasheet

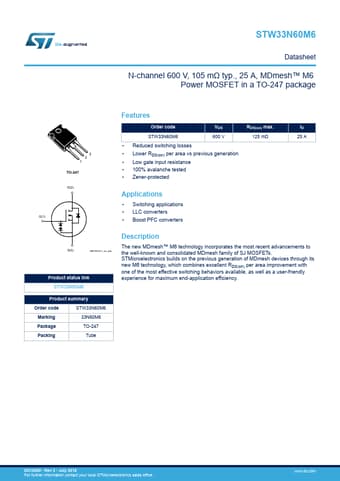

Preview of STW33N60M6 PDF
datasheet Preview Page 2 datasheet Preview Page 3
