STW33N60DM2 N-Channel Power MOSFET

STW33N60DM2 Description

STB33N60DM2, STP33N60DM2, STW33N60DM2 Datasheet N-channel 600 V, 110 mΩ typ., 24 A MDmesh DM2 Power MOSFET in D²PAK, TO‑220 and TO‑247 packages TAB .
These high voltage N-channel Power MOSFETs are part of the MDmesh DM2 fast recovery diode series.

STW33N60DM2 Features

* Order code VDS @ TJmax. STB33N60DM2 STP33N60DM2 650 V STW33N60DM2
* Fast-recovery body diode
* Extremely low gate charge and input capacitance
* Low on-resistance
* 100% avalanche tested
* Extremely high dv/dt ruggedness
* Zener-protected RDS(o

STW33N60DM2 Applications

* S(3)

📥 Download Datasheet

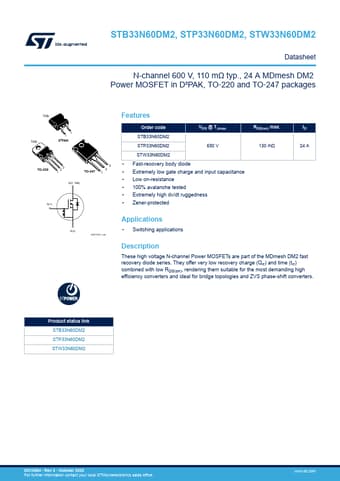

Preview of STW33N60DM2 PDF
datasheet Preview Page 2 datasheet Preview Page 3
