STW31N65M5

N-Channel Power MOSFET

STW31N65M5 Features

* Order code VDS @ TJMAX RDS(on ) max. STB31N65M5 STF31N65M5 STP31N65M5 710 V 0.148 Ω STW31N65M5

* Extremely low RDS(on)

* Low gate charge and input capacitance

* Excellent switching performance

* 100% avalanche tested ID 22 A Package D2PAK TO-220FP TO-220 TO

STW31N65M5 General Description

AM01475v1_noZen These devices are N-channel Power MOSFETs based on the MDmesh M5 innovative vertical process technology combined with the well-known PowerMESH horizontal layout. The resulting products offer extremely low on-resistance, making them particularly suitable for applications requiring h.

STW31N65M5 Datasheet (1.10 MB)

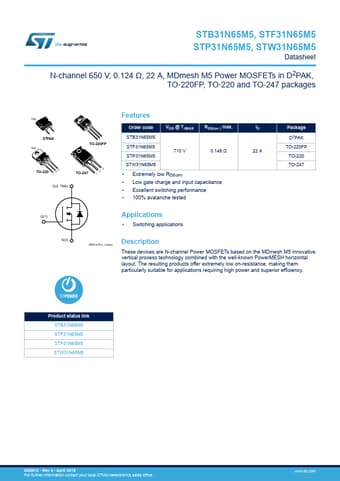

Preview of STW31N65M5 PDF

Datasheet Details

Part number:

STW31N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

1.10 MB

Description:

N-channel power mosfet.
STB31N65M5, STF31N65M5 STP31N65M5, STW31N65M5 Datasheet N-channel 650 V, 0.124 Ω, 22 A, MDmesh M5 Power MOSFETs in D2PAK, TO‑220FP, TO‑220 and TO-247 .
