STW34N65M5 N-Channel MOSFET

INCHANGE

Description

isc N-Channel MOSFET Transistor STW34N65M5 .

📥 Download Datasheet

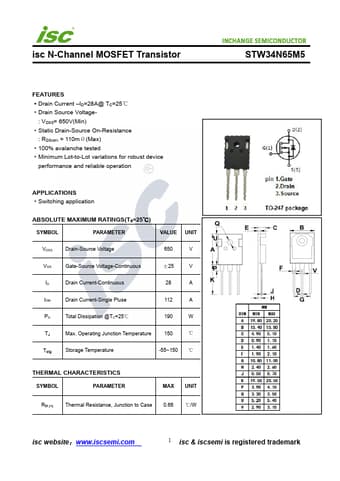

STW34N65M5 Datasheet Preview — Preview of STW34N65M5 PDF

Datasheet Specifications

Part number: STW34N65M5
Manufacturer: INCHANGE
File Size: 387.87 KB
Datasheet: STW34N65M5-INCHANGE.pdf
Description: N-Channel MOSFET

Features

* Drain Current
* ID=28A@ TC=25℃
* Drain Source Voltage- : VDSS= 650V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 110mΩ(Max)
* 100% avalanche tested

Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 650 V ±25 V ID Drain Current-Continuous 28 A IDM Drain Current-Single Pluse 112 A PD Total Dissipation @TC=25℃ 190 W TJ Max. Op
