STW36N55M5 N-Channel MOSFET

STW36N55M5 Description

isc N-Channel MOSFET Transistor STW36N55M5 *.

STW36N55M5 Features

* With TO-247 packaging
* High speed switching
* Low gate input resistance
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STW36N55M5 Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 550 V VGSS Gate-Source Voltage ±25 V ID Drain Current-Continuous@TC=25℃ 33 A IDM Drain Current-Single Pulsed 132 A PD Total Dissipation 19

📥 Download Datasheet

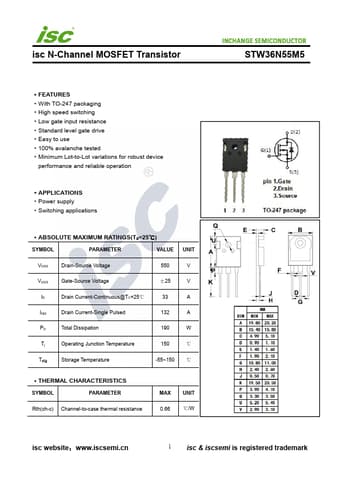

Preview of STW36N55M5 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STW36N55M5
Manufacturer
INCHANGE
File Size
369.14 KB
Datasheet
STW36N55M5-INCHANGE.pdf
Description
N-Channel MOSFET
