STW34NM60N N-Channel MOSFET

STW34NM60N Description

isc N-Channel MOSFET Transistor STW34NM60N .

STW34NM60N Features

* Drain Current
* ID=31.5A@ TC=25℃
* Drain Source Voltage- : VDSS= 600V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 105mΩ(Max)
* 100% avalanche tested

STW34NM60N Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 600 V ±25 V ID Drain Current-Continuous 31.5 A IDM Drain Current-Single Pluse 126 A PD Total Dissipation @TC=25℃ 250 W TJ Max.

📥 Download Datasheet

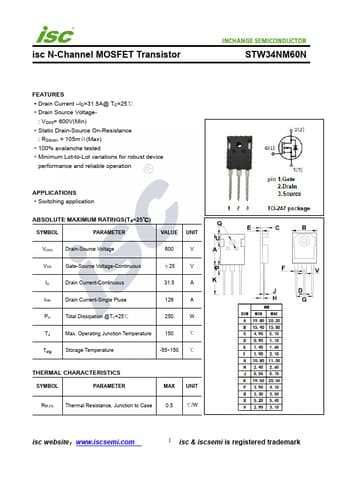

Preview of STW34NM60N PDF
datasheet Preview Page 2

Datasheet Details

Part number
STW34NM60N
Manufacturer
INCHANGE
File Size
387.33 KB
Datasheet
STW34NM60N-INCHANGE.pdf
Description
N-Channel MOSFET
