STW36NM60N - N-channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

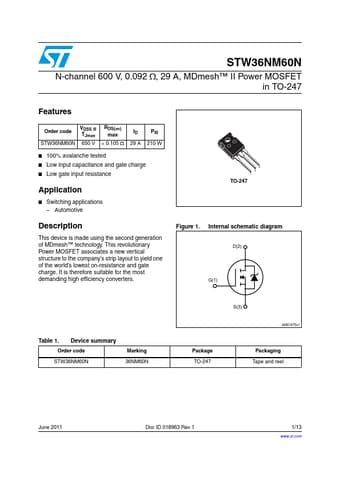

STW36NM60N Datasheet Preview — Preview of STW36NM60N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STW36NM60N
Manufacturer	STMicroelectronics
File Size	484.90 KB
Description	N-channel Power MOSFET
Datasheet	STW36NM60N-STMicroelectronics.pdf

STW36NM60N Product details

Description

This device is made using the second generation of MDmesh™ technology.

Features

Order code STW36NM60N VDSS @ TJmax 650 V RDS(on) max < 0.105 Ω ID 29 A PW 210 W.
100% avalanche tested.
Low input capacitance and gate charge.
Low gate input resistance.
