STW36N55M5 Datasheet - STMicroelectronics

N-CHANNEL POWER MOSFET

STW36N55M5 Features

* Order codes STP36N55M5 STW36N55M5 VDSS @ RDS(on) TJmax max ID 600 V < 0.08 Ω 33 A

* Worldwide best RDS(on)

* area

* Higher VDSS rating and high dv/dt capability

* Excellent switching performance

* 100% avalanche tested Applications

* Switching applications Descriptio

STW36N55M5 General Description

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low onresistance, which is unmatched among siliconbase.

STW36N55M5 Datasheet (738.12 KB)

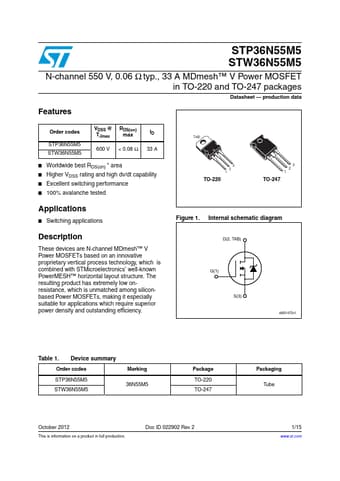

STW36N55M5 Datasheet Preview — Preview of STW36N55M5 PDF

Datasheet Details

Part number:

STW36N55M5

Manufacturer:

STMicroelectronics ↗

File Size:

738.12 KB

Description:

N-channel power mosfet.
STP36N55M5 STW36N55M5 N-channel 550 V, 0.06 Ω typ., 33 A MDmesh™ V Power MOSFET in TO-220 and TO-247 packages Datasheet production data Feat.
