PZ5032-10A44 - 32 Macrocell PLD

PZ5032-10A44 Datasheet Preview — Preview of PZ5032-10A44 PDF

Datasheet Details

Part number	PZ5032-10A44
Manufacturer	INTEGRATED CIRCUIT ENGINEERING
File Size	5.50 MB
Description	32 Macrocell PLD
Datasheet	PZ5032-10A44-INTEGRATEDCIRCUITENGINEERING.pdf

PZ5032-10A44 Product details

Description

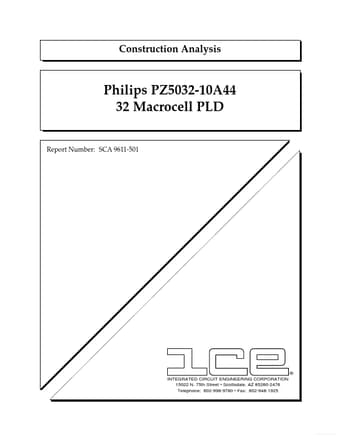

Assembly Die Process ANALYSIS RESULTS I Assembly ANALYSIS RESULTS II Die Process TABLES Procedure Overall Quality Evaluation Package Markings Wirebond Strength Die Material Analysis Horizontal Dimensions Vertical Dimensions PAGE 1 1 2 2-3 4 5-7 8 9 10 10 10 11 12 -iFree Datasheet http://www.Datasheet4U.com INTRODUCTION This report describes a construction analysis of the Philips PZ5032-10A44 32 macrocell CPLD.Five devices packaged in 44-pin Plastic Leaded Chip Carriers (PLCCs) were recei

Features

Twin-well CMOS process in an N substrate (no epi).
Sub-micron gate lengths (0.35 micron N-channel and 0.4 micron P-channel).
Tungsten plugs used under all metal layers. 1These items present possible quality or reliability concerns. They should be discussed with the manufacturer to determine their possible impact on the intended.
